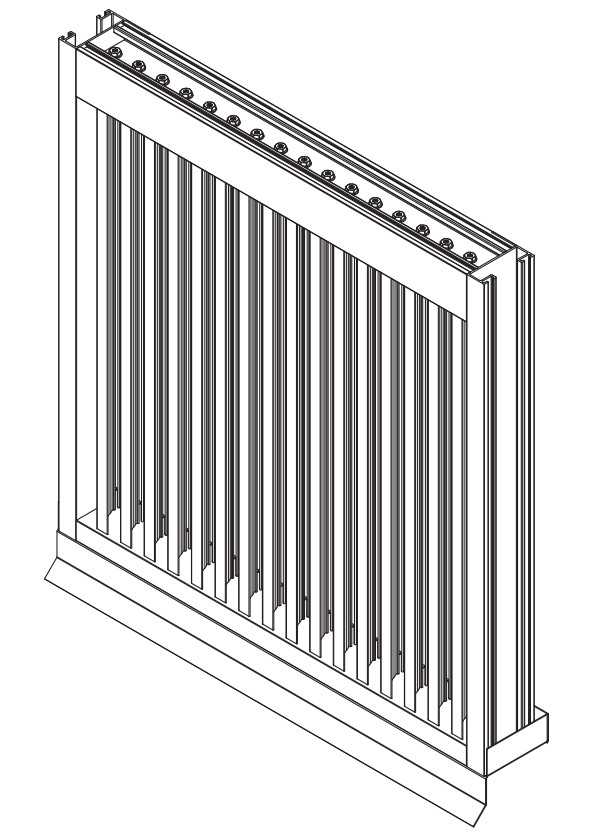

Model ECV-245

Extruded Aluminum Louver
2" Deep - 45 Degree Vertical Blade

The ECV-245 offers exceptional protection against wind-driven rain under the most severe conditions. The ECV-245 incorporates vertical blades and is available in a wide array of anodized and painted finishes including custom color matching.

Standard Construction

Material: Mill finish 6063-T5 extruded aluminum.

Frames: 2" deep x 0.060" thick (51 x 1.5) channel.

Blades: 45^o x 0.060" (1.5) thick vertical chevron style.

Screen: 1/2" x 0.063" (12.7 x 1.6) expanded and flattened aluminum.

Mullion: Visible.

Sill Flashing: Closed End

Minimum Size: 6" x 12" (152 x 305)

Maximum Size:
Single Section: 60" x 96" (1524 x 2439)
Multiple Section: Unlimited

Ratings

Free Area: 6.6 ft² (0.61 m²)

Performance @ Beginning Point of Water Penetration

Free Area Velocity: 1250 fpm (6.35 m/s)

Air Volume Delivered: 8299 cfm (3.92 m³/s)

Pressure Loss: 0.42 in. wg. (104 Pa)

Velocity @ 0.15 in. wg. Pressure Loss: 758 fpm (3.85 m/s)

AMCA Certified for Water Penetration and Air Performance
