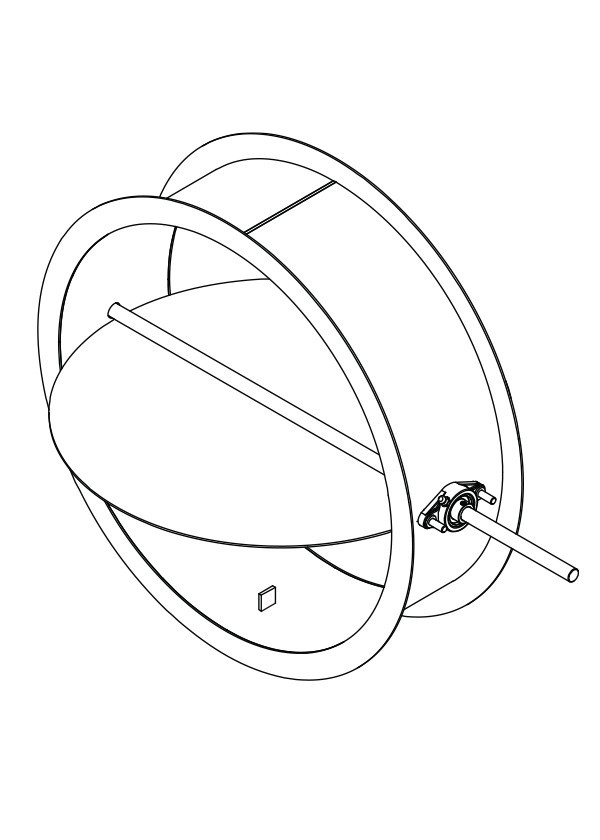

Model CD-85R

Industrial Control Damper
Single Blade - Round

CD-85R control dampers employ a rugged round channel frame and a single round blade for automatic air control and manual balancing in medium to high pressure and velocity applications.

Standard Construction

Frame: Steel channel.

Flange Type: Round.

Blade Material: Steel.

Blade Stop: Full open and closed position pin stop.

Blade Style: Single round steel blade; reinforced where required.

Axles: Plated steel.

Bearings: External ball bearing up to 250^oF (121^oC)

Control Shaft: 6" (152) long round drive axle.

Finish:
Hi-Pro poly powder coat, gray, *MCOT of 250^oF (121^oC).
High-temp powder coat, gray, *MCOT of 400^oF (204^oC).

Minimum Size:
4" Ø (102 Ø)

Maximum Size:
72" Ø (1829 Ø)

Lifting Lugs: Four 1" (25) lifting lugs provided on dampers > 16 Ø (406 Ø)

* Maximum Continuous Operating Temperature

Ratings

Velocity:
Up to 6400 fpm (32.51 m/s)

Temperature:
-40^oF to 600^oF (-40^oC to 315^oC)

Pressure:
Up to 20 in. wg. (5 kPa)
