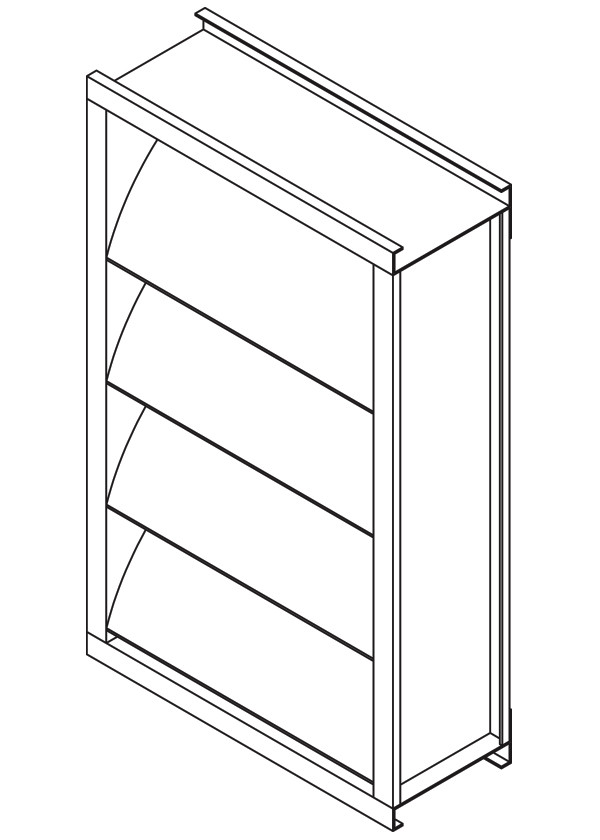

Model EAA-645

Acoustical Louver
6" Deep - 45 Degree Airfoil Blade

The EAA-645 airfoil blade acoustical louver provides low static pressure loss and reliable noise reduction over a wide range of frequencies. The EAA-645 is available in a wide array of finishes including custom color matching and is ideally suited for intake or exhaust application on standby generator enclosures.

Standard Construction

Material: Mill finish 6063-T5 extruded aluminum.

Frames: 6" deep x 0.081" thick (152 x 2) channel.

Blades: 45^o x 0.081" (2) thick J-style with a 26 ga. (0.55) thick perforated backing packed with noncombustible insulating material.

Screen: 1/2" x 0.063" (12.7 x 1.6) expanded and flattened aluminum.

Screen Frame: Removable.

Minimum Size: 12" x 16" (305 x 406)

Maximum Size:
Single Section: 60" x 120" (1524 x 3048)
Multiple Section: Unlimited

Ratings

Free Area: 4.0 ft² (0.37 m²)

Performance @ Beginning Point of Water Penetration

Free Area Velocity: 1137 fpm (5.78 m/s)

Air Volume Delivered: 4541 cfm (2.14 m³/s)

Pressure Loss: 0.06 in. wg. (16 Pa)

Velocity @ 0.15 in. wg. Pressure Loss: 1750 fpm (8.89 m/s)

Design Load: 30 psf
