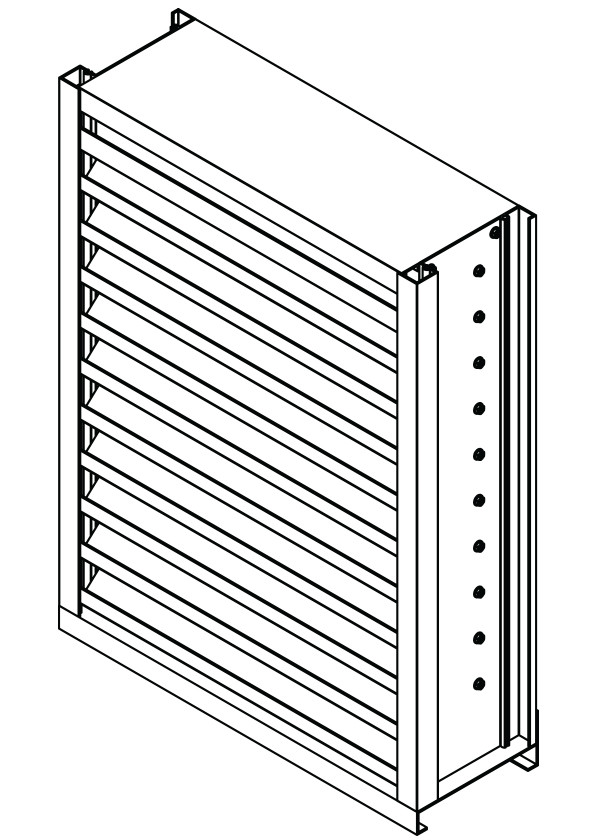

Model ECD-635

Extruded Aluminum Louver
6" Deep - 35 Degree Horizontal Drainable Blade

The ECD-635 offers exceptional protection against wind-driven rain under the most severe conditions and is ideally suited for high wind areas or applications that are sensitive to wind-driven rain penetration. The ECD-635 incorporates horizontal blades and is available in a wide array of anodized and painted finishes including custom color matching.

Standard Construction

Material: Mill finish 6063-T5 extruded aluminum.

Frames: 6" deep x 0.081" thick (152 x 2) channel.

Blades: 35^o x 0.081" (2) thick horizontal drainable style.

Screen: 1/2" x 0.063" (12.7 x 1.6) expanded and flattened aluminum.

Minimum Size: 4.5" x 7" (114 x 178)

Maximum Size:
Single Section:
60" x 120" (1524 x 3048) or 120" x 60" (3048 x 1524)
Multiple Section: Unlimited

Ratings

Free Area: 8.0 ft² (0.75 m²)

Performance @ Beginning Point of Water Penetration

Free Area Velocity: 1250 fpm (6.35 m/s)

Air Volume Delivered: 10050 cfm (4.74 m³/s)

Pressure Loss: 0.33 in. wg. (82 Pa)

Velocity @ 0.15 in. wg. Pressure Loss: 874 fpm (4.44 m/s)

Design Load: 30 psf

AMCA Certified for Water Penetration, Air Performance and Wind-Driven Rain
