Model RAD

Duct Access Door
Round Duct

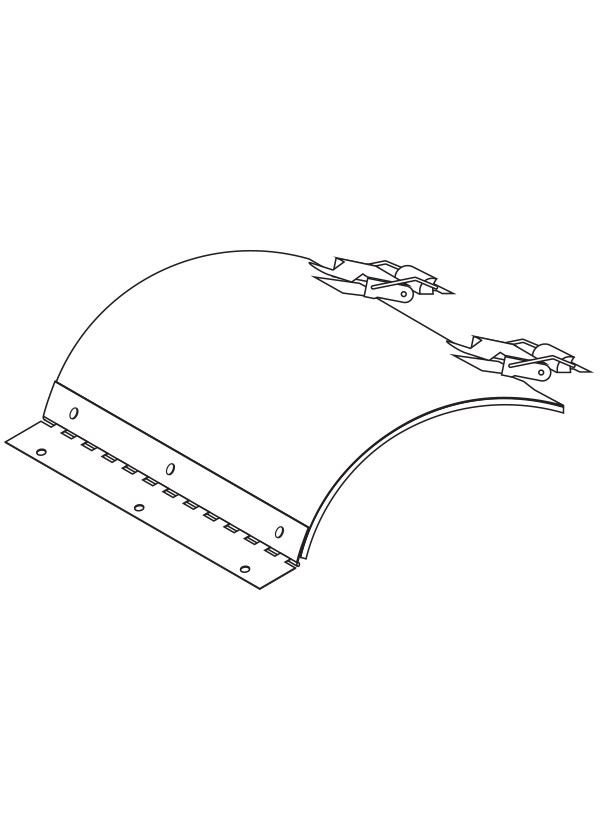

Model RAD duct access door employs a roll formed door panel to provide a convenient and economical means to obtain access to components in ductwork utilized in low to medium pressure and velocity applications.

Standard Construction

Door Panel: 16 ga. (1.6) galvanized steel.

Hinge: Galvanized - continuous piano type.

Gasket: 1" wide x 1/8" thick (25 x 3.2) closed cell neoprene - door panel to duct.

Latches: Plated steel - 2 pull and catch type with catch plates supplied loose for field installation.

Minimum Size: 5" Ø (127 Ø)

Maximum Size: 24" Ø (610 Ø)
