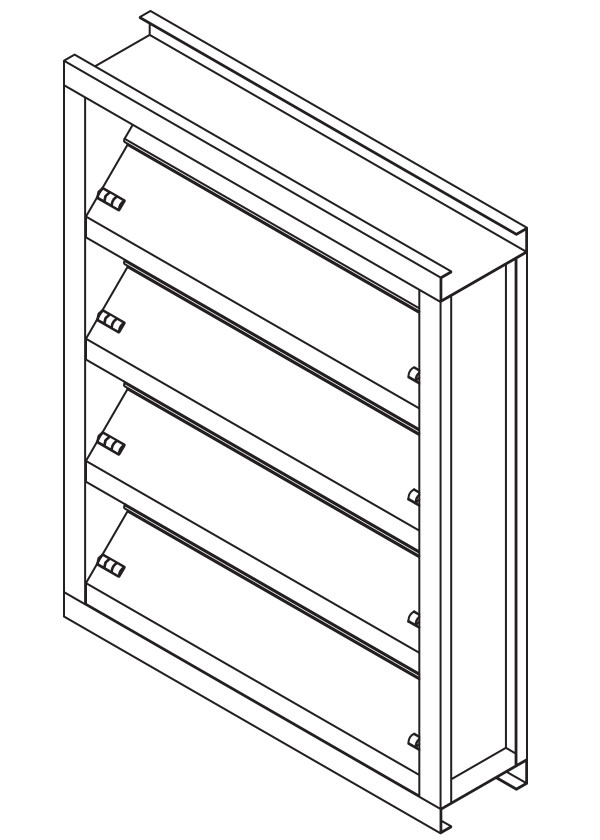

Galvannealed Steel Louver
4" Deep - 45 Degree K-Blade
The SFK-445 formed steel louver is designed for intake and exhaust application where protection against water infiltration is not critical. The SFK-445 is available in a wide array of painted finishes including custom color matching
Material: Galvannealed steel.
Frames: 4" deep x 20 ga. thick (102 x 1) channel.
Blades: 45o x 20 ga. (1) thick K style.
Screen: 1/2" x 0.063" (12.7 x 1.6) expanded and flattened aluminum.
Mullion: Visible.
Minimum Size: 12" x 12" (305 x 305)
Maximum Size:
Single Section: 48" x 96" (1219 x 2438)
Multiple Section: Unlimited
Free Area: 7.7 ft2 (0.72 m2)
Performance @ Beginning Point of Water Penetration
Free Area Velocity: 775 fpm (3.94 m/s)
Air Volume Delivered: 5991 cfm (2.83 m3/s)
Pressure Loss: 0.13 in. wg. (32 Pa)
Velocity @ 0.15 in. wg. Pressure Loss: 840 fpm (4.26 m/s)
Design Load: 30 psf
