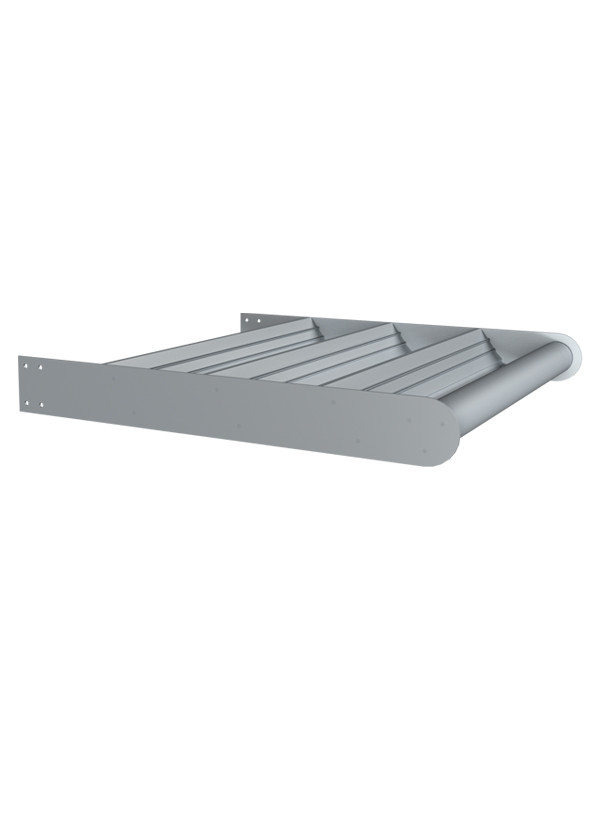

Model SSJ-645

Extruded Aluminum Sunshade
6" Deep - 45 Degree J-Blade

The SSJ-645 extruded aluminum sunshade is designed to provide distinctive style to a building's exterior while keeping the building cool. it saves energy by reducing glare and thermal load and is ideal for sustainable or "green" building construction. The SSJ-645 is available in a wide variety of anodized and painted finishes including custom color matching.

Standard Construction

Material: Mill finish 6063-T5 extruded aluminum.

Outrigger: 6" high x 0.250" thick (152 x 6.4) plate with rounded front.

Blades:  45^o x 0.081 (2.1) thick J-style.

Fascia: 3" diameter x 0.081" thick (76 x 2.1) round tube.

Minimum Size: 12" (305) wide

Maximum Size:
Single Section: Consult Factory
Multiple Section: Unlimited

Projection: 24" (610), 36" (914), 42" (1067), 48" (1219) and 60" (1524)

Mounting Bracket: Exposed
