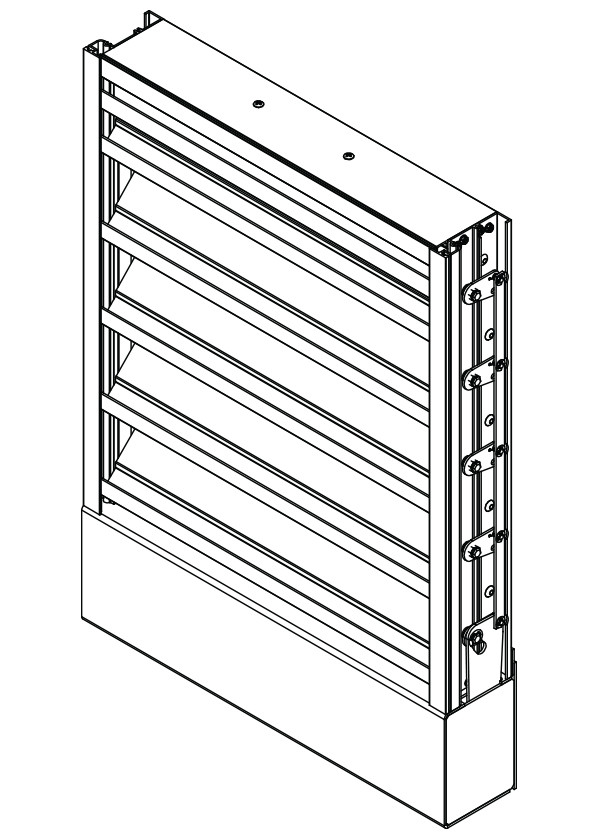

Model EOD-445-CM

Concealed Motor
4" Deep, 45 Degree Operable Drainable Blade

The EOD-445-CM louver features operable drainable blades that provide positive airflow shutoff when closed and protection against water penetration when open. The EOD-445-CM closely reflects the available options and performance of the EOD-445, with the added benefit of a spring return actuator concealed within the louver sill. The EOD-445-CM is available in a wide array of anodized and painted finishes including custom color matching.



EOD-445-CM 4" Deep, 45 Degree Operable Drainable Blade

Standard Construction

Material: Mill finish 6063-T5 extruded aluminum.

Frame: 4" deep x 0.081" thick (102 x 2) channel.

Blades: 45° x 0.081" (2) thick operable drainable style.

Screen: 1/2" x 0.063" (12.7 x 1.6) expanded and flattened aluminum.

Axles: 1/2" (13) diameter plated steel hex.

Linkage: Concealed in frame.

Actuator: 2-Position spring return, AC universal power (24V, 120V, 240V).

Bearings: Synthetic.

Mullion: Visible.

Minimum Size: 12" x 14" (304 x 355)

Maximum Size:
Single section: 48" x 96" (1219 x 2436)
Multiple section: Unlimited



Ratings

Design Load: 30 psf

Operating Temperature Range: -20oF to +180oF (-7oC to +82oC)
