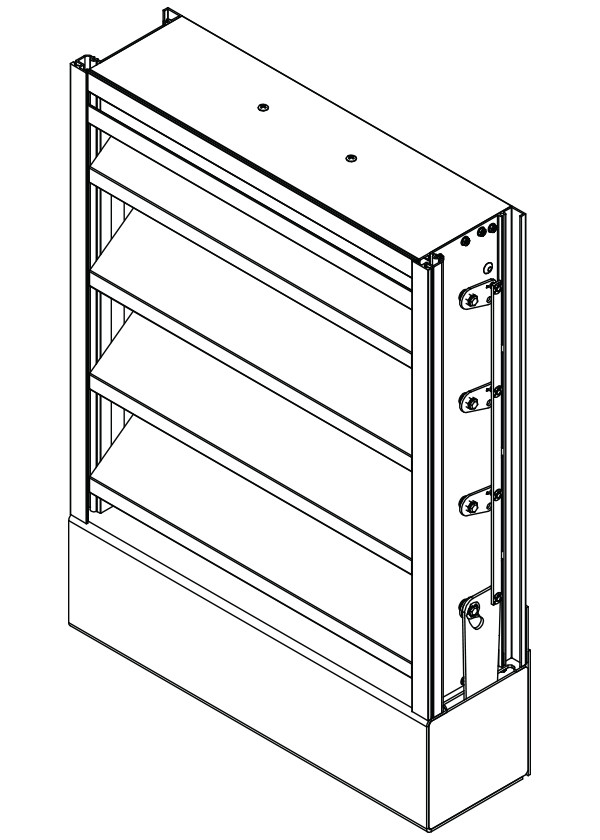

Model EOJ-637-CM

Concealed Motor
6" Deep, 37-1/2 Degree Operable J-Blade

The EOJ-637-CM louver features operable blades that allow positive shutoff protection of air intake and exhaust openings. The EOJ-637-CM closely reflects the available options and performance of the EOJ-637 with the added benefit of a spring return actuator concealed within the louver sill. The EOJ-637-CM is available in a wide array of anodized and painted finishes including custom color matching.

Standard Construction

Material: Mill finish 6063-T5 extruded aluminum.

Frame: 6" deep x 0.081" thick (152 x 2) channel.

Blades: 371/2^o x 0.081" (2) thick operable J-style.

Screen: 1/2" x 0.063" (12.7 x 1.6) expanded and flattened aluminum.

Axles: 1/2" (13) diameter plated steel hex.

Linkage: Concealed in frame.

Actuator: 2-Position spring return, AC universal power (24V, 120V, 240V).

Bearings: Synthetic.

Minimum Size: 12" x 16" (304 x 406)

Maximum Size:
Single section: 48" x 96" (1219 x 2436)
Multiple section: Unlimited

Ratings

Design Load: 30 psf

Operating Temperature Range: -20^oF to +180^oF (-7^oC to +82^oC)
