Pottorff > Louvers and Penthouses > Louvers and Penthouses > Concealed Motor > EXA-645-CM

Model EXA-645-CM

Extruded Aluminum Louver
6" Deep - 37.5 - 45 Degree Combination Blade

The EXA-645-CM combination louver features stationary drainable louver blades to protect against water penetration and an integral airfoil blade control damper to allow positive shutoff protection of air intake and exhaust openings. The EXA-645-CM closely reflects the available options and performance of the EXA-645-CM, with the added benefit of a spring return actuator concealed within the louver sill.

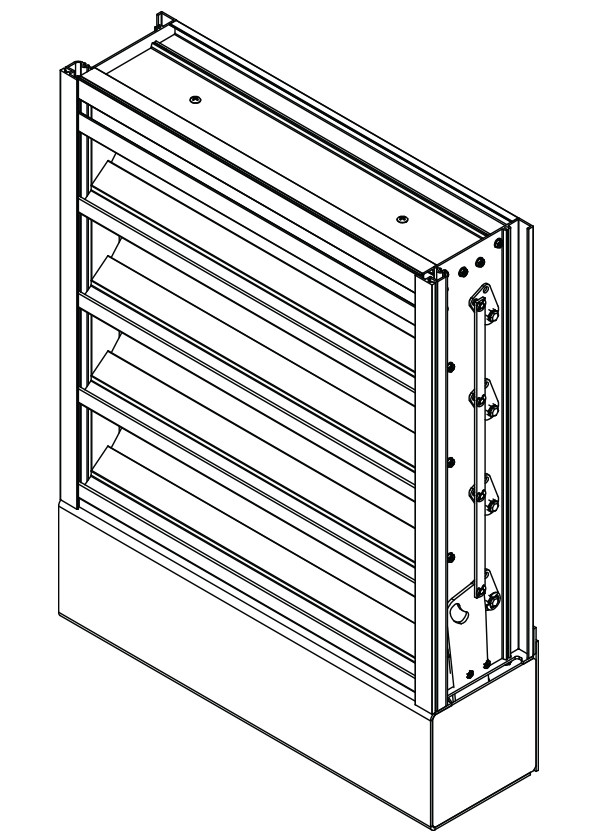

EXA-645-CM 6" Deep - 37.5 - 45 Degree Combination Blade

Standard Construction

Material: Mill finish 6063-T5 extruded aluminum.

Frame: 6" deep x 0.081" thick (152 x 2) channel.

Blades:
Front: 37.5o x 0.081" (2) thick drainable style.
Back: 45o x 0.125" (3) thick operable airfoil style.

Screen: 1/2" x 0.063" (12.7 x 1.6) expanded and flattened aluminum.

Axles: 1/2" (13) diameter steel hex.

Linkage: Concealed in frame.

Actuator: 2-Position spring return, AC universal power (24V, 120V, 240V).

Bearings: Synthetic.

Minimum Size: 12" x 14" (304 x 355)

Maximum Size:
Single section: 48" x 96" (1219 x 2438)
Multiple section: Unlimited

Ratings

Design Load: 25 psf

Operating Temperature Range: -20oF to +180oF (-7oC to +82oC)
