Model HJ-645

Extruded Aluminum Sight Screen

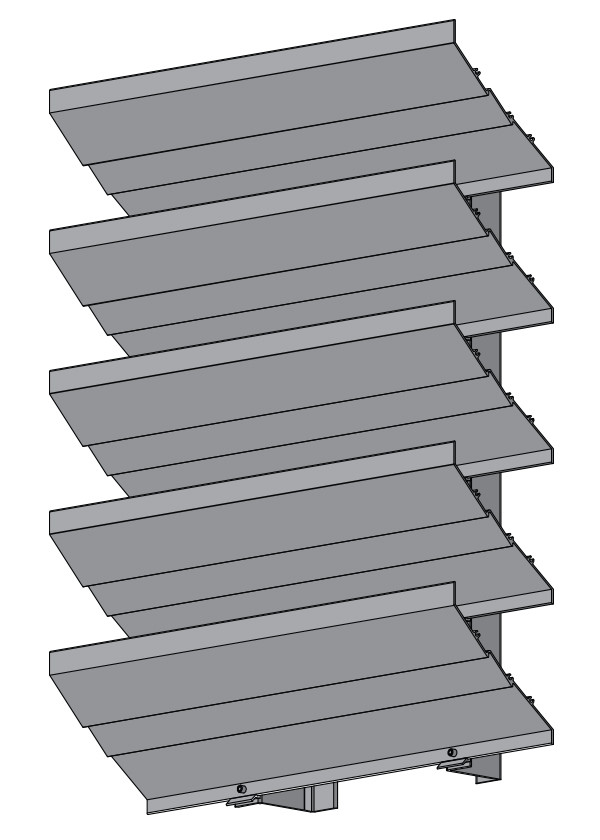

6" Deep - 45 Degree Horizontal Inverted J-Blade

The HJ-645 inverted louver blade equipment screen provides an effective and attractive sight screen around equipment and is designed for both interior and exterior installations. The HJ-645 is available in a wide array of finishes including custom color matching.

Standard Construction

Material: Mill finish 6063-T5 extruded aluminum.

Frames: 3-1/4" x 1-1/2" x 1/8" thick (83 x 38 x 3) zee support.

Blades: 45^o x 0.081" (2) thick J-style.

Corner: Boxed.

Minimum Size: 20" x 12" (508 x 305)

Maximum Size:
Single Section: 60" x 120" (1524 x 3048) or 120" x 60" (3048 x 1524)
Multiple Section: Unlimited width x 120" (3048)

Ratings

Free Area: 7.8 ft² (0.73 m²)

Design Load: 30 psf
