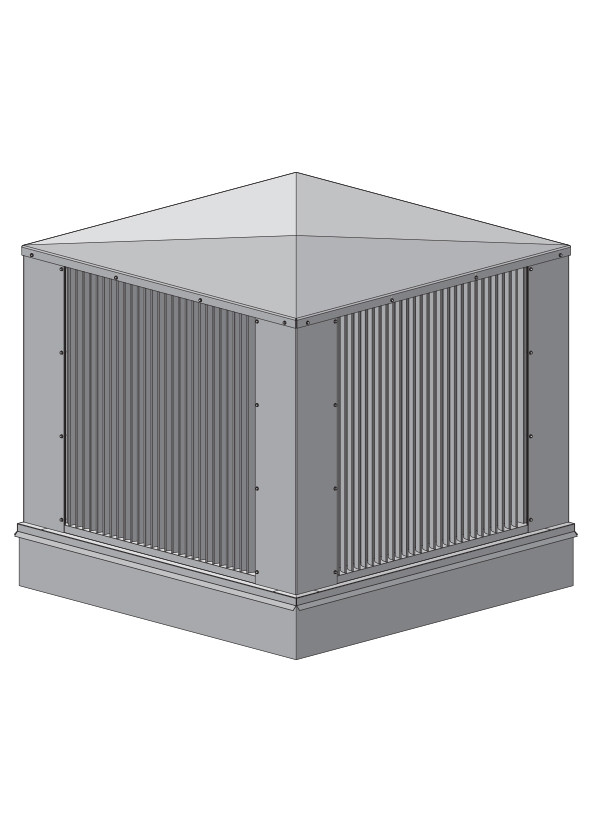

Model ECV-645-PH
Extruded Aluminum Penthouse
6" Deep - 45 Degree Vertical Blade
The ECV-645-PH extruded aluminum penthouse is designed for intake and exhaust applications and includes wind-driven rain resistant louvers to minimize water penetration. The ECV-645-PH can serve as a gravity ventilator, fan discharge cap, fresh air intake cap, sight shield, or pressure relief ventilator.
Standard Construction
Material: Mill finish 6063-T5 extruded aluminum.
Frames: 6" deep x 0.081" thick (152 x 2) channel.
Blades: 45o x 0.081" (2) vertical Chevron.
Corner: Boxed.
Roof: 0.081" (2) thick formed aluminum with anti-condensate roof under coating.
Screen: 1/2" x 0.063" (12.7 x 1.6) expanded and flattened aluminum.
Mullion: Visible
Sill Flashing: Open end
Minimum Size: 12" x 12" (305 x 305), 12" (305) high.
Maximum Size:
Factory assembled: 48" x 48" (1219 x 1219)
Field erected: 96" x 120" (2438 x 3048)
Maximum Height: 48" (1219)
Design Load: 25 psf
