Model FOJ-445

Pultruded Fiberglass Louver
4" Deep - 45 Degree Operable Blade

Pottorff's FOJ-445 is an operable blade, fiberglass louver used in applications where corrosive air exists for exhaust, air supply or pressure relief. The FOJ-445 is available for in-cavity wall installation, or flange mounted to exterior/interior of the wall. It can also be used on the discharge or intake side of exhaust and supply fans. Flange drilling is available as an option.

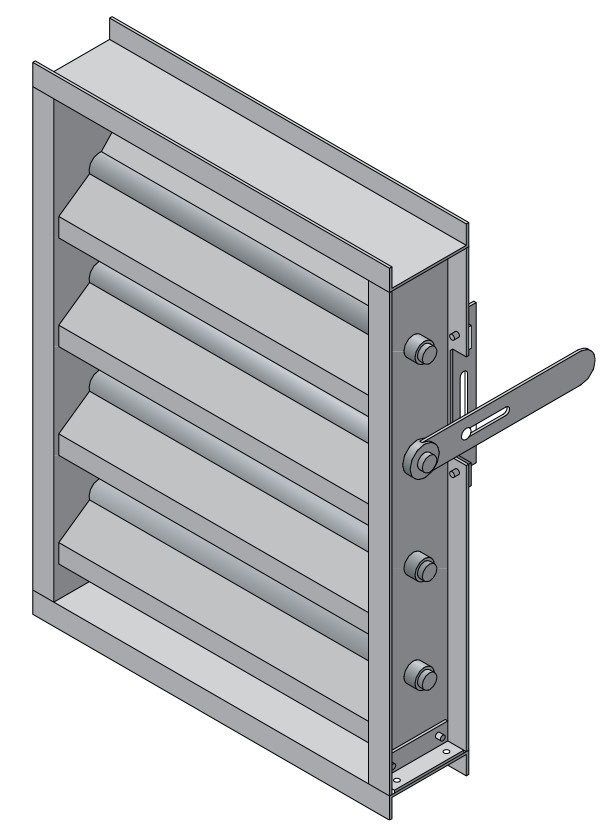

FOJ-445 4" Deep - 45 Degree Operable Blade

Standard Construction

Material: Unfinished Pultruded Fiberglass.

Frames: 4" deep x 1.06" (102 x 27) fiberglass channel, 1/8" (3.2) thick.

Blades: 1/8" (3.2) thick fiberglass on 45o angle approximately 4.5" (114) center to center.

Screen: 1/2" mesh x 19-gauge (13 x 1.1) PCV coated bird-screen.

Axles: Fiberglass Rod Stub

Bearings: PTFE

Minimum Size: 12" x 12" (305 x 305)

Maximum Size:
Single Section: 48" x 72" (1219 x 1829)
Multiple Section: Unlimited

Ratings

Free Area: 6.4 ft2 (0.60 m2)



Performance @ Beginning Point of Water Penetration

Free Area Velocity: 627 fpm (3.19 m/s)

Air Volume Delivered: 4030 cfm (1.90 m3/s)

Pressure Loss: 0.07 in. wg. (21 Pa)

Velocity @ 0.15 in. wg. Pressure Loss: 1123 fpm (5.71 m/s)

Maximum Temp: 200oF (94oC)
