Model RCS-10

Remote Manual Control Damper
Single Blade

RCS-10 control damper employs a single blade and an integrated screw-drive assembly for remote cable operated manual air control and balancing in low pressure and velocity applications.

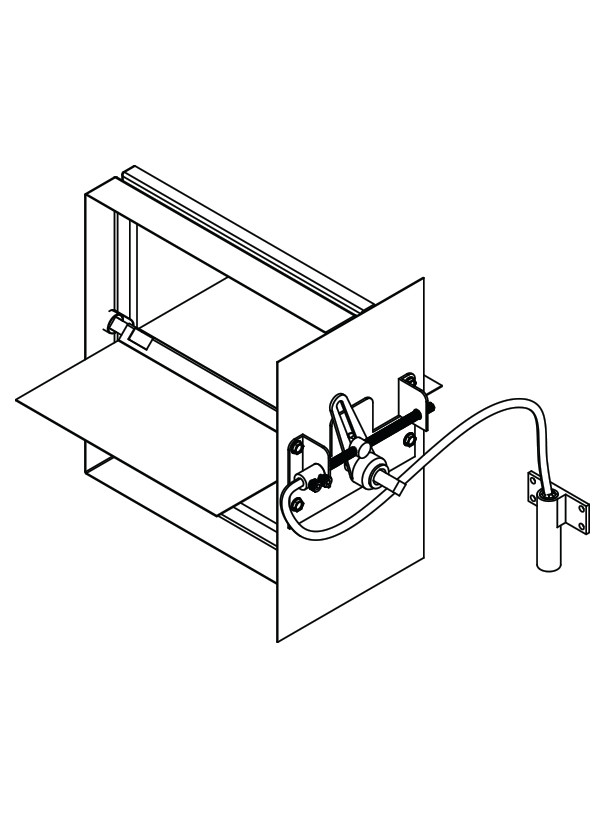

RCS-10 Single Blade

Standard Construction

Frame: 2" x 22 ga. (51 x 0.85) galvanized steel.

Blades: 22 ga. (0.85) galvanized steel.

Axles: 3/8" (10) square plated steel.

Bearings: Synthetic.

Control Shaft: 3/8" x 3" (10 x 76) drive axle with a control arm/screw-drive assembly factory installed on a stand-off bracket attached to a 10" x 22 ga. (254 x 0.85) side plate secured to the damper frame.

Remote Control Assembly: 5/32" Ø x 36" long (4.0 Ø x 914) cable with 3/16" (4.8) allen hex-head drive, 2" (51) wide mounting bracket, 15/16" x 1-1/2" long (24 x 38) round plastic tube and plastic finishing plug.

Minimum Size: 6" x 4" (152 x 102)

Maximum Size: 36" x 12" (914 x 305)

Ratings

Maximum System Velocity: 1500 fpm (7.7 m/s)

Maximum System Pressure: 1 in. wg. (0.25 kPa)

Temperature: -25oF to 180oF (-32oC to 83oC)
