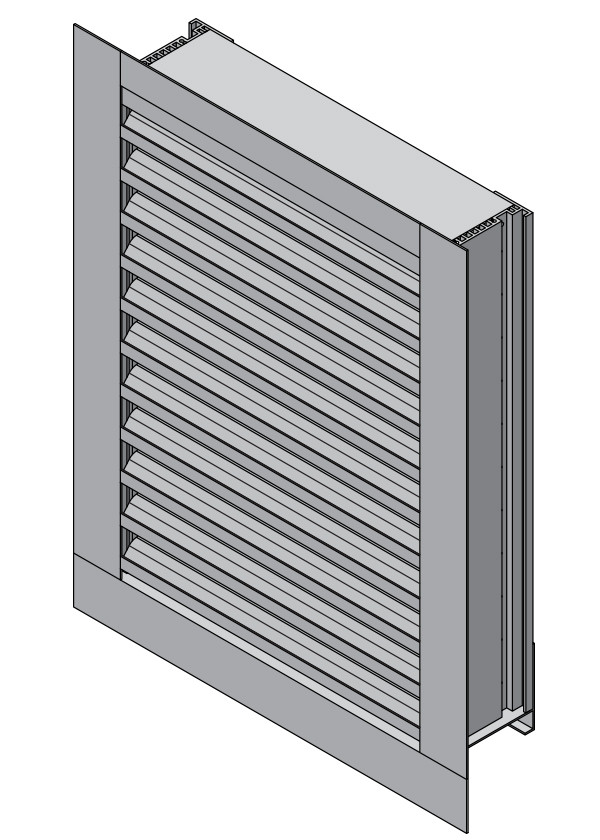

Model ECD-545-BL

Extruded Aluminum Blast Louver
5" Deep - 45 Degree Horizontal Blade

The ECD-545-BL offers exceptional protection against wind-driven rain under the most severe conditions and is ideally suited for high wind areas or applications that are sensitive to wind-driven rain penetration. The ECD-545-BL incorporates horizontal blades and is available in a wide array of anodized and painted finishes including custom color matching.

The ECD-545-BL louver is independent 3rd-party tested for blast resistance, meeting the requirements of GSA Condition 2 when exposed to peak blast pressures of 16.7 psi and impulses of 85.6 psi-ms.

Standard Construction

Material: Mill finish 6063-T5 extruded aluminum

Frame: 5" deep x 0.081" thick (12.7 x 2) channel, 1-1/2" Flange Frame

Blades: 45⁰ x 063 (1.6) thick horizontal chevron style

Screen: 1/2" x 0.063" (12.7 x 1.6) expanded and flattened aluminum

Minimum Size: 12" x 12" (305 x 305)

Maximum Size:
Single Section: 60" x 120" (1524 x 3048)
Multiple Section: Unlimited x 120" (3048)

Installation Hardware: Continuous angles

Ratings

Free Area: 7.4 ft² (0.69 m²)

Performance @ Beginning Point of Water Penetration

Free Area Velocity: 1250 fpm (6.35 m/s)

Air Volume Delivered: 9250 cfm (4.37 m³/s)

Pressure Loss: 0.24 in. wg. (60 Pa)

Velocity @ 0.15 in. wg. Pressure Loss: 980 fpm (4.98 m/s)

Design Load: 30 psf

 Blast Loading: GSA Performance Condition: 2
-16.7 psi peak pressure at impulse 85.6 psi-ms
-12.1 psi repeated pressure at impulse 97.3 psi-ms

AMCA Certified for Water Penetration, Air Performance and Wind-Driven Rain
