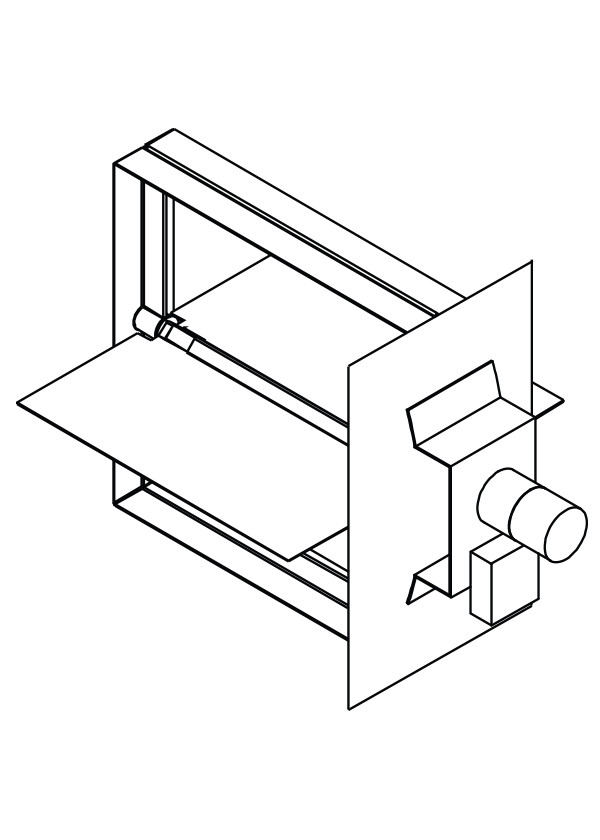

Model RD-10

Remote Powered Balancing Damper
Single Blade

RD-10 remote powered balancing damper employs a single blade and a 9VDC actuator for handheld remote air control and balancing. The RD-10 is maintenance free, easy to install, and requires no permanent power source. It is ideally suited for hard ceiling applications or any situation where access to manually adjust the damper is difficult.

Standard Construction

Frame: 2" x 212 ga. ( 51 x 0.85) galvanized steel with 6" (152) side plate.

Blades: 22 ga. (0.85) galvanized steel - single square/rectangular.

Axles: 3/8" (10) square plated steel.

Bearings: Synthetic.

Operator: 9 volt DC actuator with RJ-11 6P4C connection powered by optional RC-9V handheld remote damper controller.

Minimum Size: 6" x 4" (152 x 102)

Maximum Size: 36" x 12" (914 x 305)

Ratings

Maximum System Velocity: 1500 fpm (7.7 m/s)

Maximum System Pressure: 1 in. wg. (0.25 kPa)

Temperature: -25oF to 180oF (-32oC to 83oC)
