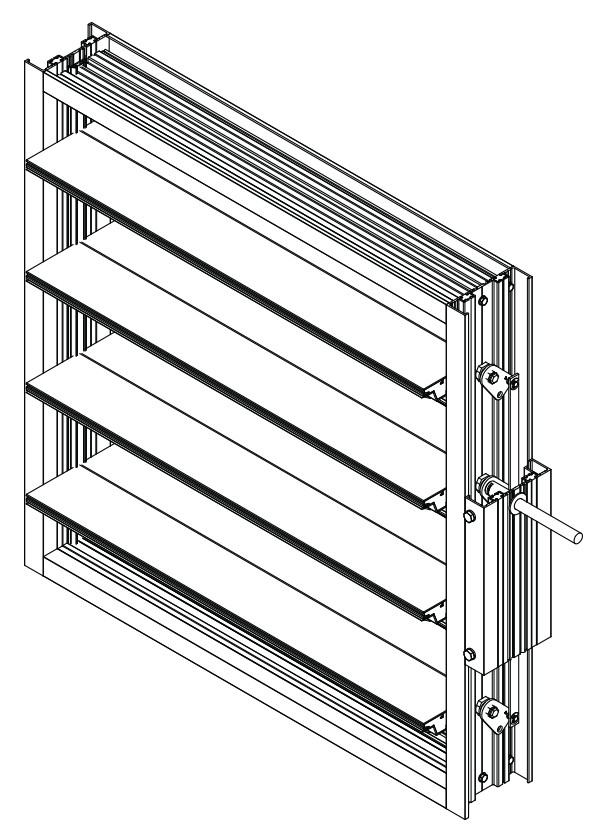

Thermally Insulated Control Damper

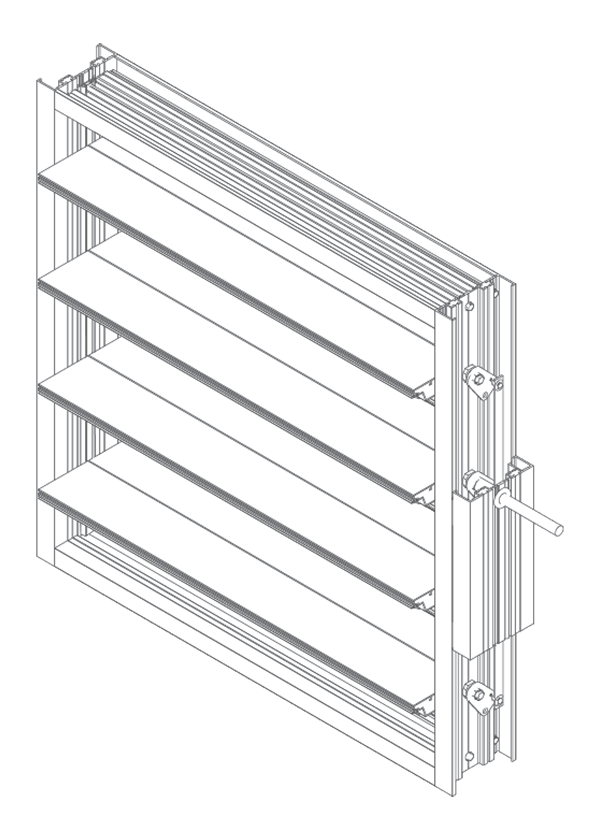

Broken Airfoil Blade
The TICD-52 control damper employs thermally insulated and broken aluminum airfoil blades and a rugged channel frame to eliminate the transfer of heat or cold penetration and reduce condensation. The TICD52 damper provides extremely low leakage and exceptional air control in medium to high pressure and velocity applications. Both models comply with the IECC (International Energy Conservation Code) with a leakage rating of 3 cfm/ft2 @ 1 in. wg. (0.015 m3/s/m2 @ 0.25 kPa) or less.
Frame: 4" x 1" x 0.081" (102 x 25 x 2) top/bottom and
4" x 1-1/8" x 0.081" (102 x 29 x 2) jambs, extruded aluminum channel.
Blades: 6" (152) heavy gauge, dual wall thermally insulated and broken extruded aluminum - airfoil. Opposed.
Axles: 1/2" (13) diameter plated steel hex.
Linkage: Concealed in frame.
Bearings: Synthetic.
Seals: Silicone - blade edge and jambs. Mechanically fastened.
Control Shaft: 1/2" x 6" (13 x 152) round drive axle with outboard shaft support bracket and bearing supplied for field installation. Factory installed 3/4" (19) diameter jackshaft on all multiple section dampers more than 2 sections wide.
Minimum Size: 6" x 12.5" (152 x 318)
Maximum Size:
Single Section: 60" x 72" (1524 x 1829)
Multiple Section: Unlimited
Temperature: -45oF to 212oF (-43oC to 100oC)
Leakage Class: 1A and 1 (see table on product sheet)
