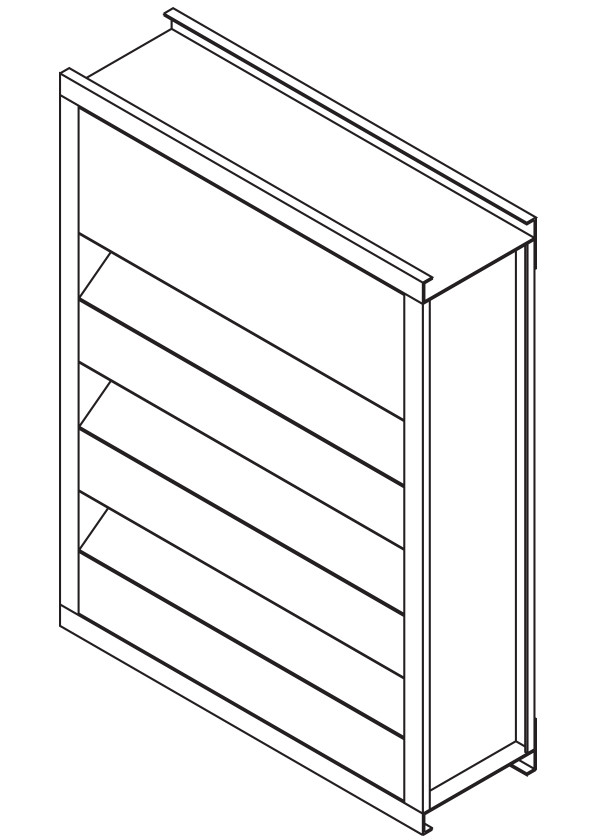

Model EAJ-637

Acoustical Louver
6" Deep - 37 Degree Insulated J-Blade

The EAJ-637 extruded aluminum acoustical louver incorporates a J-blade and is designed for intake and exhaust applications where space is limited. The EAJ-637 is available in a wide array of finishes including custom color matching.



EAJ-637 6" Deep - 37 Degree Insulated J-Blade

Standard Construction

Material: Mill finish 6063-T5 extruded aluminum.

Frames: 6" deep x 0.081" thick (152 x 2) channel.

Blades: 37o x 0.081" (2) thick J-style with a 26 ga. (0.55) thick perforated backing packed with noncombustible insulating material.

Screen: 1/2" x 0.063" (12.7 x 1.6) expanded and flattened aluminum.

Screen Frame: Removable.

Mullion: Visible.

Minimum Size: 12" x 12" (305 x 305)

Maximum Size:
Single Section: 60" x 120" (1524 x 3048)
Multiple Section: Unlimited

Ratings

Free Area: 5.2 ft2 (0.48 m2)



Performance @ Beginning Point of Water Penetration

Free Area Velocity: 890 fpm (4.526 m/s)

Air Volume Delivered: 4637 cfm (2.19 m3/s)

Pressure Loss: 0.15 in. wg. (37 Pa)



Velocity @ 0.15 in. wg. Pressure Loss: 890 fpm (4.52 m/s)

Design Load: 30 psf
