Model VT-250

Extruded Aluminum Sight Screen
2-1/2" Deep - Vertical Cladding

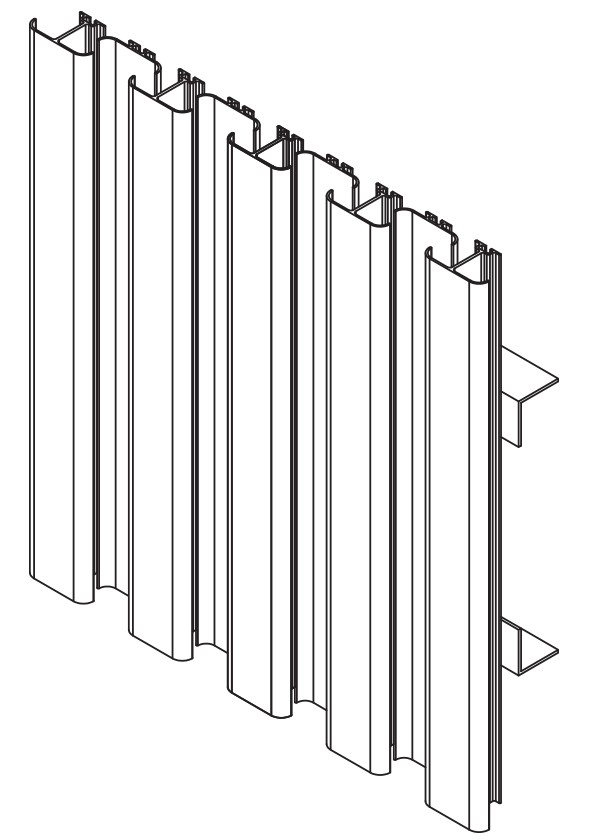

The VT-250 equipment screen incorporates a vertical "T" blade to match common building cladding systems and keeps screen equipment out of sight. The VT-250 is available in a wide array of finishes including custom color matching.

Standard Construction

Material: Mill finish 6063-T5 extruded aluminum.

Frames: 2" x 1-1/2" x 0.081" thick (51 x 38 x 2) angle.

Blades: 0.081" (2) thick vertical cladding T-style.

Mullion: Visible.

Minimum Size: 12" x 12" (305 x 305)

Maximum Size:
Single Section: 72" x 144" (1829 x 3658) or 144" x 72" (3658 x 1829)
Multiple Section: Unlimited

Ratings

Free Area: 3.9 ft² (0.36 m²)
