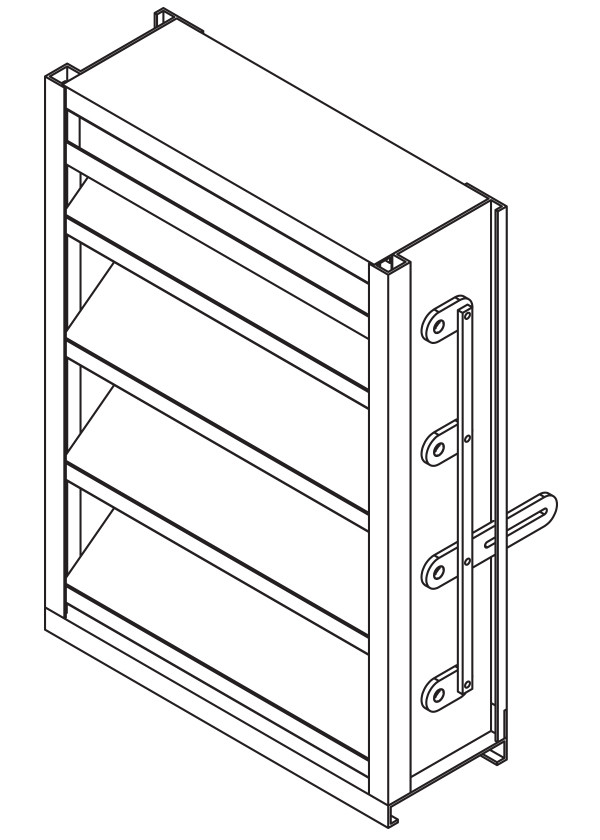

Model EOJ-637

Extruded Aluminum Louver
6" Deep - 37-1/2 Degree Operable J-Blade

The EOJ-637 louver features operable blades that allow positive shutoff protection of air intake and exhaust openings. The EOJ-637 is available in a wide array of anodized and painted finishes including custom color matching. These units are also available with a variety of factory mounted electric or pneumatic actuators.

EOJ-637 6" Deep - 37-1/2 Degree Operable J-Blade

Standard Construction

Material: Mill finish 6063-T5 extruded aluminum.

Frames: 6" deep x 0.081" thick (152 x 2) channel.

Blades: 37-1/2o x 0.081" (2) thick operable J-style.

Screen: 1/2" x 0.063" (12.7 x 1.6) expanded and flattened aluminum.

Mullion: Visible.

Minimum Size: 12" x 12" (305 x 305)

Maximum Size:
Single Section:
48" x 96" (1219 x 2436) with low leakage seals.
60" x 96" (1524 x 2436) without low leakage seals.
Multiple Section: Unlimited

Ratings

Free Area: 9.0 ft2 (0.84 m2)



Performance @ Beginning Point of Water Penetration

Free Area Velocity: 810 fpm (4.11 m/s)

Air Volume Delivered: 7282 cfm (3.44 m3/s)

Pressure Loss: 0.12 in. wg. (30 Pa)



Velocity @ 0.15 in. wg. Pressure Loss: 960 fpm (4.88 m/s)

Design Load: 30 psf
