Model PW

Access Panel
Plastered Surfaces

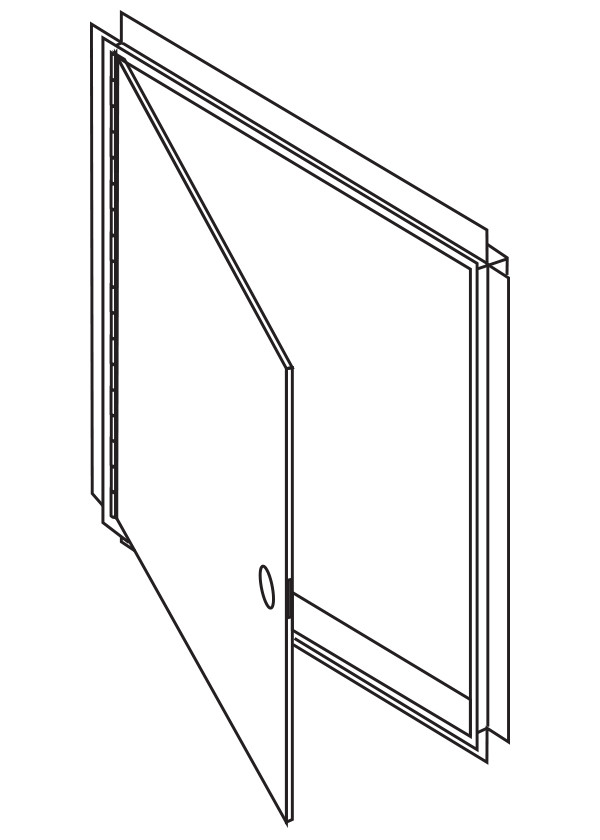

Model PW access panel employs a hinge door panel to provide a convenient and economical means to obtain access to components behind pastered surfaces.

Standard Construction

Frame: 1" x 1-3/4" x 16 ga. (25 x 45 x 1.6) phosphate dipped flange with grey prime coat finish - complete with 3/4" plaster ground.

Door Panel: 14 ga. (2.0) phosphate dipped steel with grey prime coat finish.

Hinge: Concealed - continuous piano type.

Latches: Steel - screwdriver operated cam type.

Minimum Size: 12" x 12" (305 x 305)

Maximum Size: 24" x 24" (610 x 6108)
