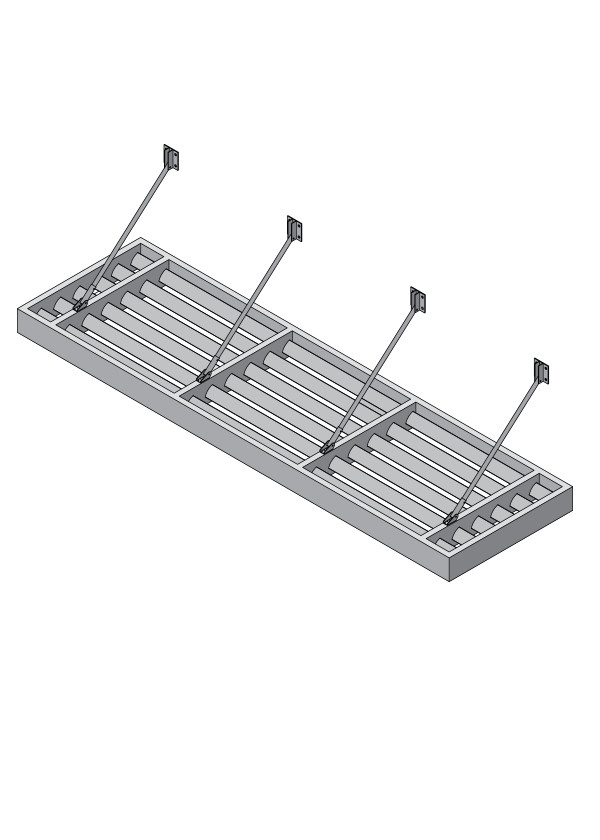

Model ACA-445

Extruded Aluminum Canopy
4" Airfoil Blade

The ACA-445 extruded aluminum canopy is designed to provide distinctive style to a building's exterior while keeping the building cool and saving energy by reducing glare and thermal load.

Standard Construction

Material: Mill finish aluminum

Frame Member: 8" tall x 2" deep (203 x 51) channel

Blades: 45^o x 0.085" (2.2) thick airfoil style

Tieback Shroud: 1.3" tall x 1.08" wide x 0.085" thick (33 x 27 x 2) pipe

Mounting Rail: Hidden

Minimum Size:
Single Section: 36" wide x 18" projection (914 x 457)

Maximum Size:
Single Section: 120" x 48" (3048 x 1219)
Multiple Section: Unlimited width x 48" (1219)

Maximum shroud spacing is 96" (2438). Overhang is 12" (305) past shroud on each end.

Ratings

Design Load: 50 psf downward/30 psf upward
