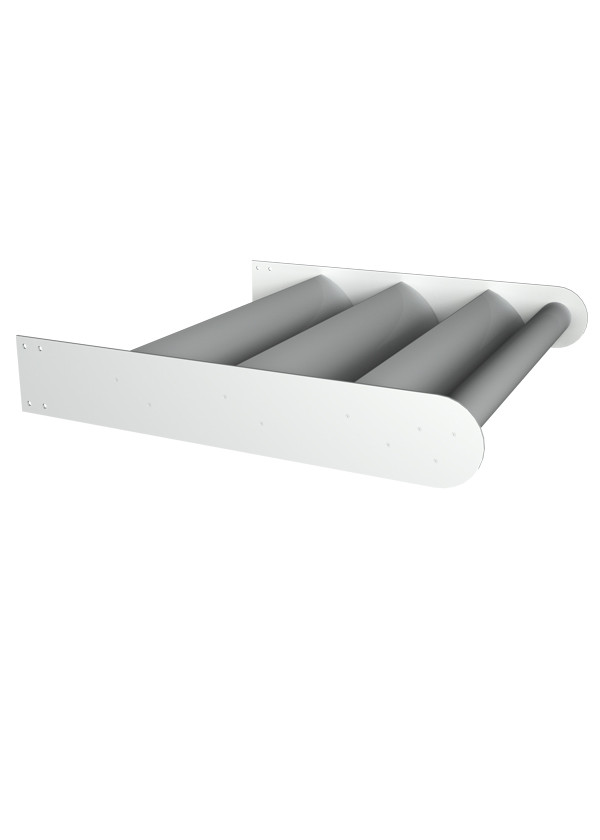

Model SSA-445

Extruded Aluminum Sunshade
4" Deep - 45 Degree Airfoil Blade

The SSA-445 extruded aluminum sunshade is designed to provide distinctive style to a building's exterior while keeping the building cool. It also saves energy by reducing glare and thermal load. The SSA-445 is ideal for sustainable or "green" building construction. The SSA-445 is available in a wide array of anodized and painted finishes incuding custom color matching.

SSA-445 4" Deep - 45 Degree Airfoil Blade

Standard Construction

Material: Mill finish 6063-T5 extruded aluminum.

Outrigger: 4" high x 0.250" thick (102 x 6.4) plate with rounded front.

Blades:  45o x 0.085 (2.2) thick airfoil style.

Fascia: 3" diameter x 0.081" thick (76 x 2.1) round tube.

Minimum Size: 12" (305) wide

Maximum Size:
Single Section: Consult Factory
Multiple Section: Unlimited

Projection: 24" (610), 36" (914), 42" (1067), 48" (1219) and 60" (1524)

Mounting Bracket: Exposed
