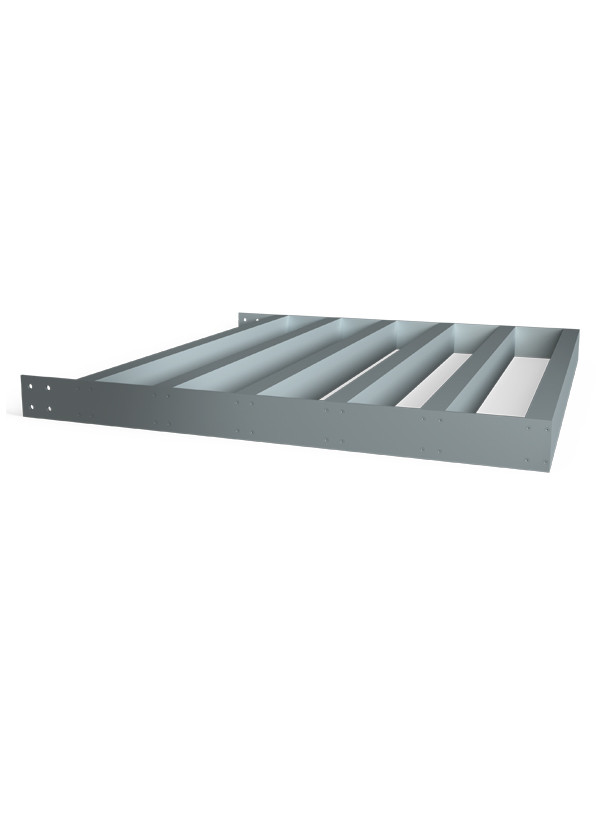

Model SSR-445

Extruded Aluminum Sunshade
4" Deep - Rectangular Tube Blade

The SSR-445 extruded aluminum sunshade is designed to provide distinctive style to a building's exterior while keeping the building cool. it saves energy by reducing glare and thermal load and is ideal for sustainable or "green" building construction. The SSR-445 is available in a wide variety of anodized and painted finishes including custom color matching.

Standard Construction

Material: Mill finish 6063-T5 extruded aluminum.

Outrigger: 4" high x 0.250" thick (102 x 6.4) plate with rounded front.

Blades:  0.125 (3.2) thick rectangular tube style.

Fascia: 4" x 2" x 0.125" thick (102 x 51 x 3.2) rectangular tube.

Minimum Size: 12" (305) wide

Maximum Size:
Single Section: Consult Factory
Multiple Section: Unlimited

Projection: 24" (610), 36" (914), 42" (1067), 48" (1219) and 60" (1524)

Mounting Bracket: Exposed
