Model CD-104

Industrial Control Damper
Airfoil Blade

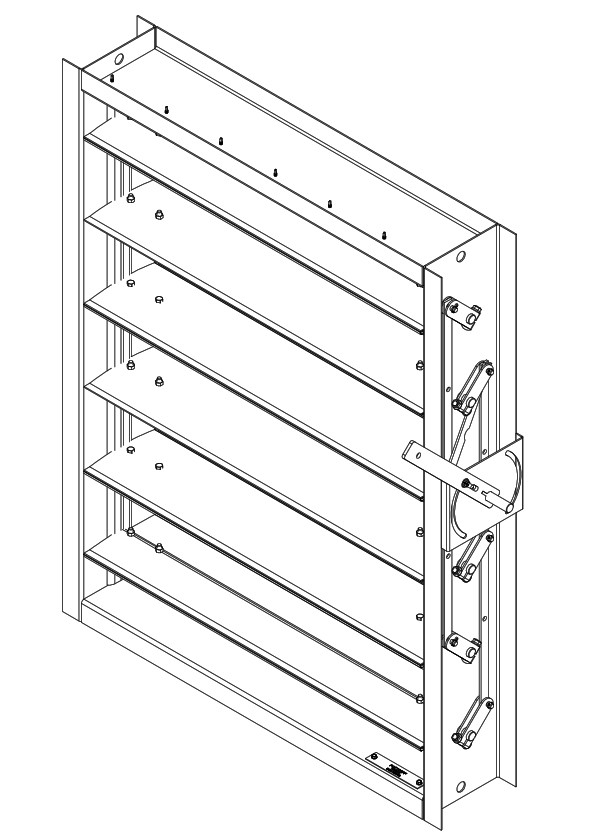

CD-104 industrial conrol damper employs heavy duty airfoil blades, a rugged langed frame and options for low leakage in high temperature air and high pressure applications. Ideal for high performance air intake and discharge applications where low leakage is critical.

Standard Construction

Frames: 8" x 2" x 14 ga (203 x 51 x 2) glavanized steel channel.

Blades: 0.080" (2) thick extruded aluminum airfoil. Opposed action.

Axles: 3/4" (19) diameter plated steel.

Linkage: 3/16" x 3/4" (4.7 x 19) plated steel tie bars and 3/8" (10) stainless steel pins concealed in frame.

Bearings: Stainless steel sleeve bearing, press fit into frame.

Control Shaft: 3/4" x 10 (19 x 254) round drive shaft with shaft support bracket and bearing mouned to damper frame with factory mounted/welded manual locking quadrant.

Lifting Lugs: 7/8" (22) diameter, one on each jamb of frame.

Minimum Size: 8" x 12" (203 x 305)

Maximum Size:
Single Section: 60" x 96" (1524 x 2438)
Multiple Sections: Unlimited
