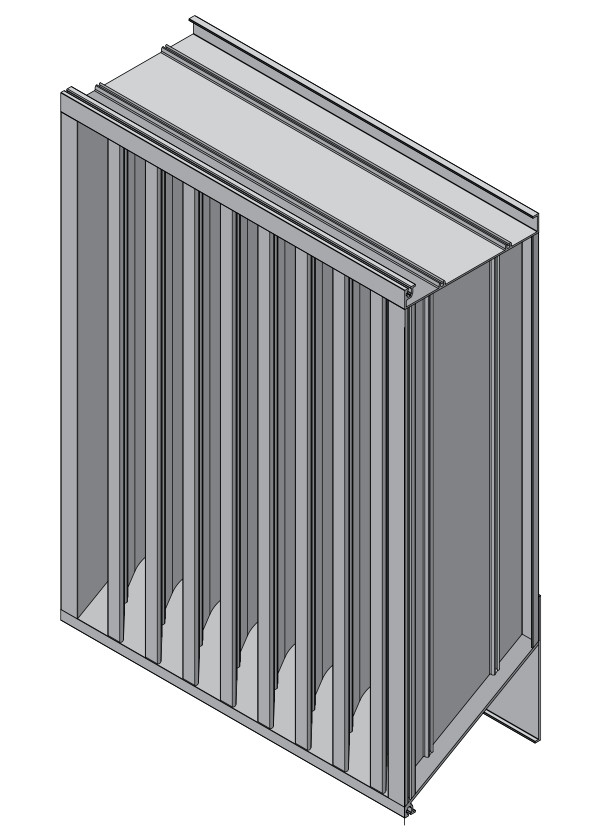

Model EVS-745

Extruded Aluminum Sand Louver
7" Deep - 45 Degree Vertical Blade

The EVS-745 is designed and tested for protection against wind-driven sand. The EVS-745 offers greater free area and lower pressure loss than most other sand-trap louvers, making it well suited for situations requiring high rates of airflow through the louver. The EVS-745 incorporates vertical blades and is available in a wide array of anodized or painted finishes including custom color matching.

Standard Construction

Material: Mill finish 6063 extruded aluminum.

Frames: 7" deep x 0.081" thick (178 x 2) channel.

Blades: 0.081" (2) thick vertical chevron style.

Screen: 1/2" x 0.063" (12.7 x 1.6) expanded and flattened aluminum.

Mullion: Visible.

Minimum Size: 12" x 12" (305 x 305)

Maximum Size:
Single Section: 60" x 120" (1524 x 3048) or 120" x 60" (3048 x 1524)
Multiple Section: Unlimited

Shipping Weight: (approximate): 8.5 lbs/ft² (42 kg/m²)

Ratings

Free Area: 7.1 ft² (0.66 m²)

Performance @ Beginning Point of Water Penetration

Free Area Velocity: 822 fpm (4.18 m/s)

Air Volume Delivered: 5807 cfm (2.74 m³/s)

Pressure Loss: 0.20 in. wg. (51 Pa)

Velocity @ 0.15 in. wg. Pressure Loss: 706 fpm (3.59 m/s)

Design Load: 30 psf

AMCA Certified for Air Performance and Wind-Driven Sand
