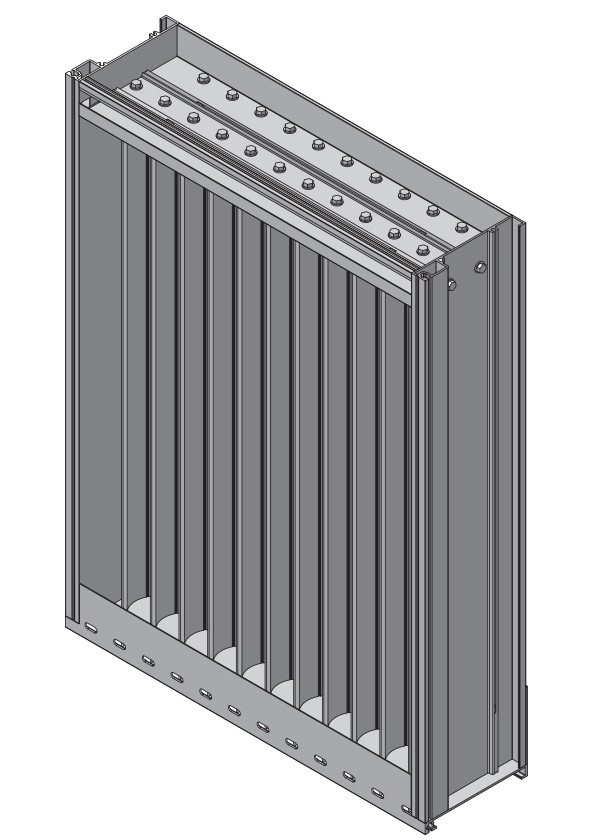

Model ECV-545

Extruded Aluminum Louver
5" Deep - 45 Degree Vertical Blade

The ECV-545 is engineered and tested to withstand extreme loads, debris impact and cyclic fatigue associated with the severe weather effects of hurricanes while maintaining maximum water infiltration resistance at a minimum louver depth.

ECV-545 5" Deep - 45 Degree Vertical Blade

Standard Construction

Material: Mill finish 6063-T5 extruded aluminum.

Frames: 5" deep x 0.081" thick (127 x 2) channel.

Blades: 45o x 0.081" (2) thick vertical style.

Screen: 1/2" x 0.063" (12.7 x 1.6) expanded and flattened aluminum.

Mullion: Visible.

Minimum Size: 12" x 12" (305 x 305)

Maximum Size:
Single Section:
60" x 120" (1524 x 3048)
Multiple Section: Unlimited

Ratings

Free Area: 8.77 ft2 (0.82 m2)



Performance @ Beginning Point of Water Penetration

Free Area Velocity: 1250 fpm (6.35 m/s)

Air Volume Delivered: 10963 cfm (5.17 m3/s)

Pressure Loss: 0.28 in. wg. (70 Pa)



Velocity @ 0.15 in. wg. Pressure Loss: 912 fpm (4.63 m/s)

Design Load: 130 psf

AMCA 540 and 550 Listed
AMCA Certified for Water Penetration, Air Performance and Wind-Driven Rain
