Model TICD-51

Thermally Insulated Control Damper
Broken Airfoil Blade

The TICD-51 control dampe employs thermally insulated and broken aluminum airfoil blades and a rugged channel frame to eliminate the transfer of heat or cold penetration and reduce condensation. The TICD-51 damper provides extremely low leakage and exceptional air control in medium to high pressure and velocity applications. Both models comply with the IECC (International Energy Conservation Code) with a leakage rating of 3 cfm/ft 2 @ 1 in. wg. (0.015 m3 /s/m2 @ 0.25 kPa) or less.

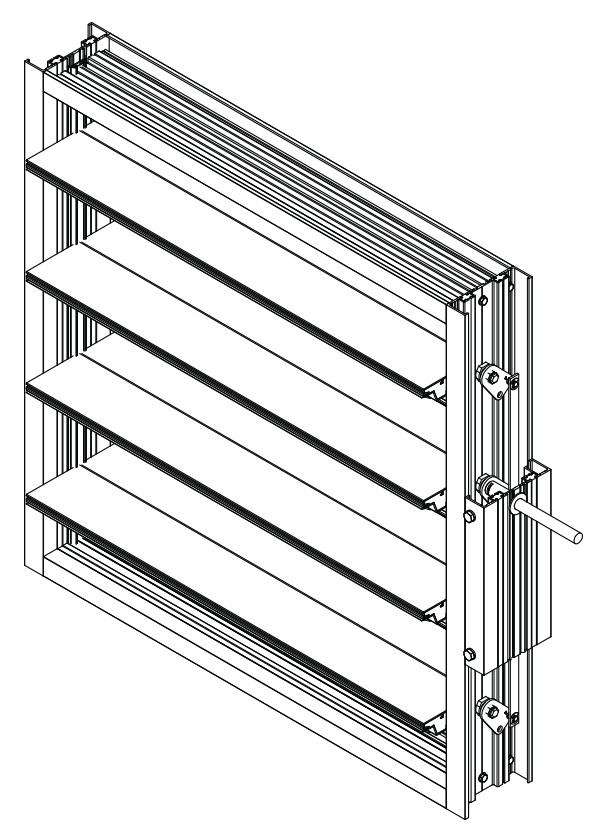

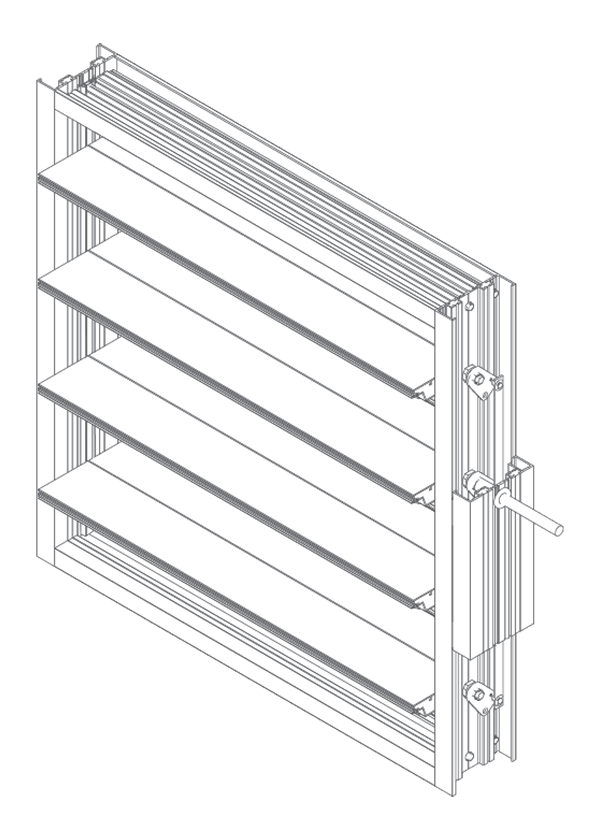

TICD-51 Broken Airfoil Blade

Standard Construction

Frame: 4" x 1" x 0.081" (102 x 25 x 2) top/bottom and
4" x 1-1/8" x 0.081" (102 x 29 x 2) jambs, extruded aliminum channel.

Blades: 6" (152) heavy gauge, dual wall thermally insulated and broken extruded aluminum - airfoil. Parallel.

Axles: 1/2" (13) diameter plated steel hex.

Linkage: Concealed in frame.

Bearings: Synthetic.

Seals: Silicone - blade edge and jambs. Both are mechanically fastened.

Control Shaft: 1/2" x 6" (13 x 152) round drive axle with outboard shaft support bracket and beating supplied for field installation. Factory installed 3/4" (19) diameter jackshaft on all multiple section dampers more than 2 sections wide.

Minimum Size: 6" x 6.5" (152 x 165)

Maximum Size:
Single Section: 60" x 72" (1524 x 1829)
Multiple Sections: Unlimited



Temperature: -45oF to 212oF (-43oC to 100oC)

Leakage Class: 1A and 1 (see chart on product sheet)
