Model TICD-51BFX

Extreme Cold Weather Control Damper
Broken Airfoil Blade

The TICD-51BFX control damper employs thermally insulated and broken aluminum airfoil blades and a thermally broken rugged channel frame to eliminate the transfer of heat or cold penetration and reduce condensation. The TICD51BFX damper is designed for extremely cold temperatures and provide extreme low leakage as well as exceptional air control in medium to high pressure and velocity applications. Both models comply with the IECC (International Energy Conservation Code) with a leakage rating of 3 cfm/ft2 @ 1 in. wg. (0.015 m3/s/m2 @ 0.25 kPa) or less.

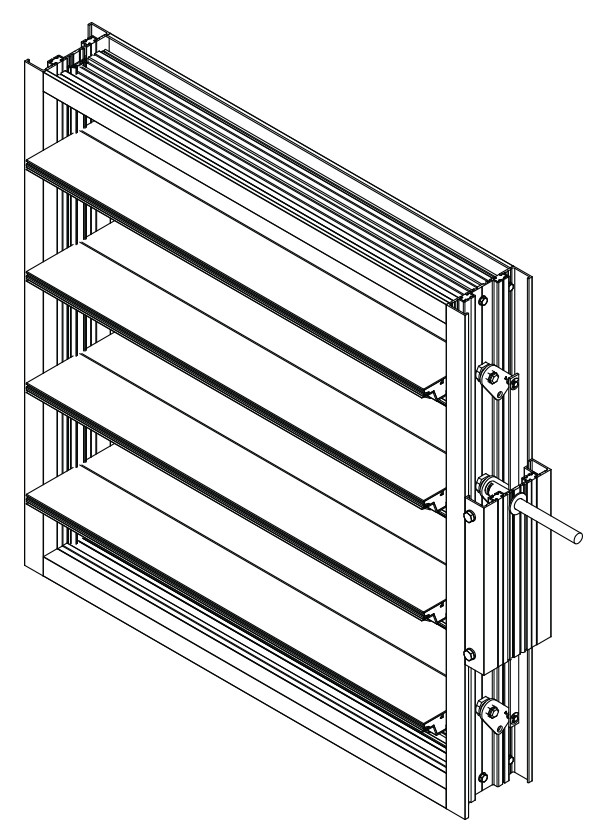

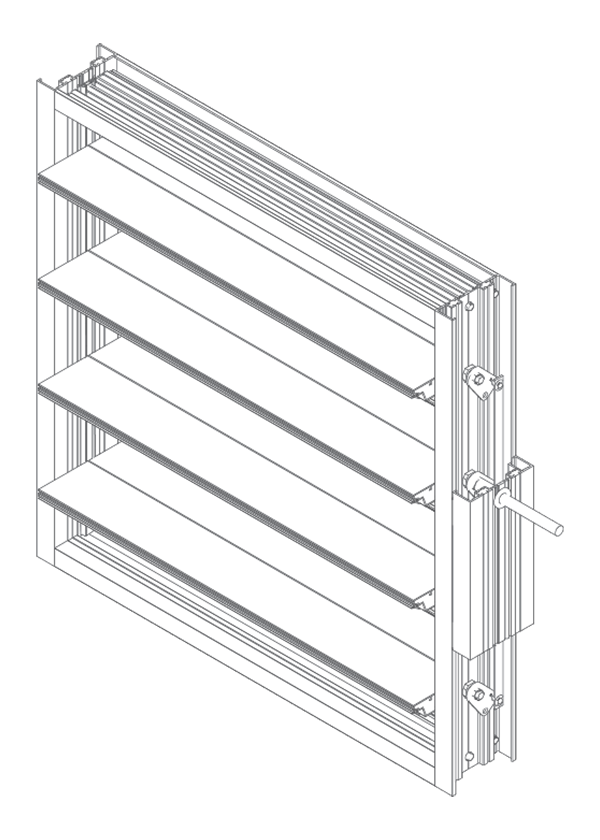

TICD-51BFX Broken Airfoil Blade

Standard Construction

Frame: 4" x 1" x 0.081" (102 x 25 x 2) top/bottom and
4" x 1-1/8" x 0.081" (102 x 29 x 2) jambs, extruded aluminum channel.

Blades: 6" (152) heavy gauge, dual wall thermally insulated and broken extruded aluminum - airfoil. Parallel.

Axles: 1/2" (13) diameter plated steel hex.

Linkage: Concealed in frame.

Bearings: Synthetic.

Seals: Silicone - blade edge and jambs. Mechanically fastened.

Control Shaft: 1/2" x 6" (13 x 152) round drive axle with outboard shaft support bracket and bearing supplied for field installation. Factory installed 3/4" (19) diameter jackshaft on all multiple  section dampers more than 2 sections wide.

Minimum Size: 6" x 6.5" (152 x 165)

Maximum Size:
Single Section: 60" x 72" (1524 x 1829)
Multiple Section: Unlimited


Temperature: -100oF to 212oF (-73oC to 100oC)

Leakage Class: 1A or 1 (see table on product sheet)
